Two-Roll Machines


Two-Roll Machines

The Seny LOW COST line convinces by an excellent price-performance-ratio, available from 5to up to 100to. There is more power on request. All models are equipped with SIEMENS SPS control and frequency converter (FU) for infinitive variable speed.


The universal composition allows the application of the machine for all known processes of forming in in-feed or throughfeed. Highest production rates can be realized. Manual loading and unloading supported by the generous working space.

The automation of this model range is always possible because of the open construction of the working space and makes the handling easy. This reduces the bottom to bottom time and simplifies loading and discharging of the work pieces.

High precise profile guiding rails lead to higher quality in through-feed or in-feed are guaranteed process. Thanks to ECO-SYS short changeover times are guaranteed. All adjustments are easily done from the front of the machine.

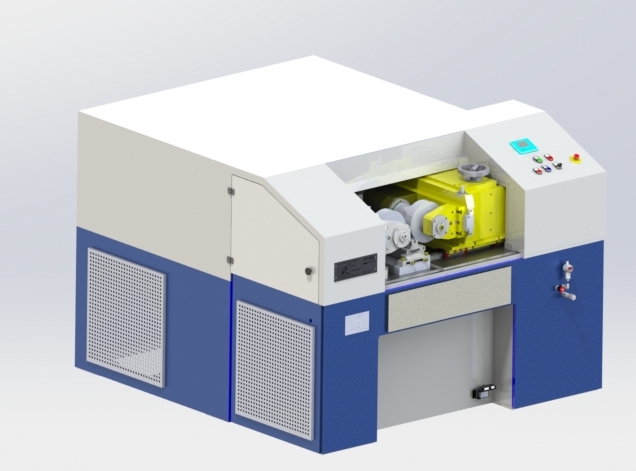

Seny-15
Seny-15

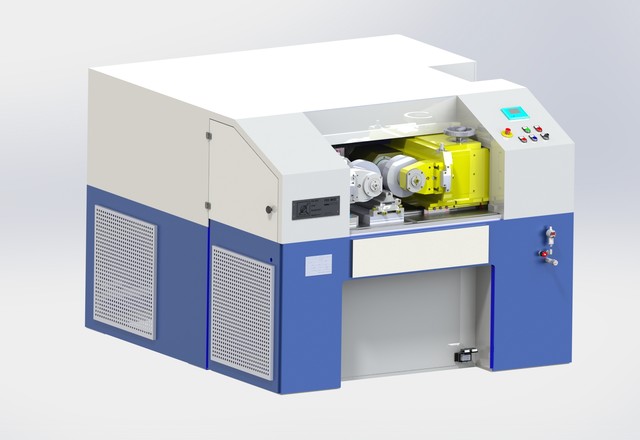

Seny-24
Seny-24

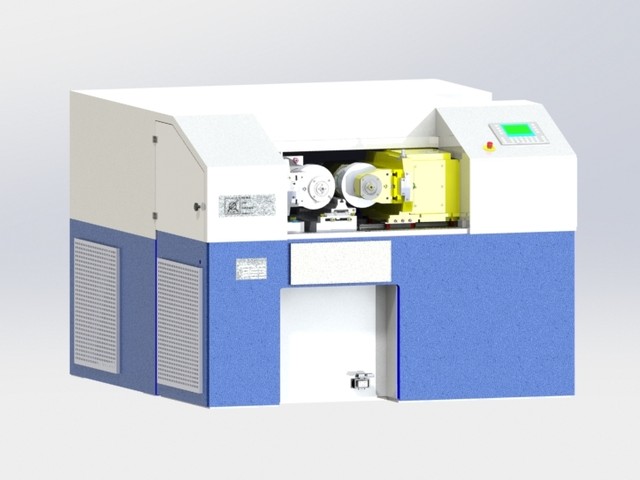

Seny-85
Seny-85

Technical Data:

Model Forming force Tool ø Shaft ø Support length Work piece ø Weight
Seny-5 10 - 50 kN 90 - 110 mm 40 mm 60 mm 0 - 25 mm 980 kg
Seny-10 10 - 100 kN 130 - 180 mm 54 mm 120 mm 3 - 40 mm 1.400 kg
Seny-15 max. 150 kN 135 - 230 mm 54/69,85/80 mm max. 200 mm 2 - 55 mm 2.600 kg
Seny-20 10 - 200 kN 130 - 200 mm 54 / 69,85 mm 180 mm 4 - 50 mm 2.600 kg
Seny-24 max. 240 kN 135 - 230 mm 69,85/80 mm max. 200 2 - 55 mm 2.900 kg
Seny-30 max. 300 kN 150 - 260 mm 80/100 mm max. 225 mm 2 - 150 mm 4.600 kg
Seny-40 max. 400 kN 150 - 260 mm 80/100 mm max. 225 mm 2 - 150 mm 4.800 kg
Seny-50 max. 500 kN 150 - 280 mm 100 mm max. 250 mm 2 - 240 mm 7.500 kg
Seny-60 max. 600 kN 150 - 280 mm 100 mm max. 250 mm 2 - 240 mm 7.800 kg
Seny-85 50 - 850 mm 160 - 280 mm 100 mm 230 mm 4 - 250 mm 9.800 kg
Seny-100 50 - 1000 kN 160 - 280 mm 100 / 120 mm 240 mm 4 - 250 mm 10.800 kg
